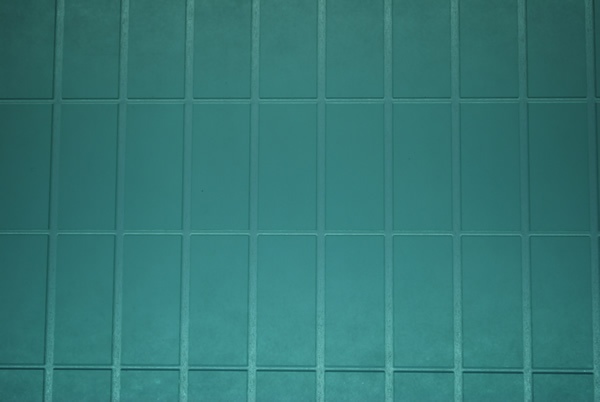

光繪菲林-LCD-TN/STN/TFT凸版
產品詳細介紹
主要應用領域：
菲林測試卡LCD-TN/STN/TFT配向液的滾筒涂膠，即轉移PI定向液至ITO玻璃上。可以按照客戶要求提供具有良好的網點深度與網點均勻性，使得移印的PI厚度均一的優良產品。
Applications：
精度指標 Specifications
| 精度、級別Accuracy、Class | 精度1(Grade 1) | 精度2(Grade 2) |
| 線數/開口率Mesh/Dot Rate | 400dpi/50% | 350dpi/50% |
| 網點排列、網點形狀Dot Angle、Dot shape | 45°/60°/75°/circle | 45°/60°/75°/circle |
| 凸版尺寸精度Pattern Dimension Accuracy | ±0.085mm | ±0.085mm |
| 基板厚度Back Thickness | 1.50mm±0.15mm | 1.50mm±0.15mm |
| 切割精度Long Dimension Accuracy | ±1mm | ±1mm |
Mainly used for roller coating of LCD-TN/STN/TFT.Roller coating is transferring PI orientation liquid to the ITO glass.We can afford fine depth and uniformity of dot net according to customer requirments to get better PI liquid.
我司在菲林領域的主要生產經營范圍：PCB/FPC/LCD/TP光繪菲林，手機鏡片菲林，導光板菲林，蝕刻菲林，印刷包裝菲林輸出，測量菲林，圖卡菲林
